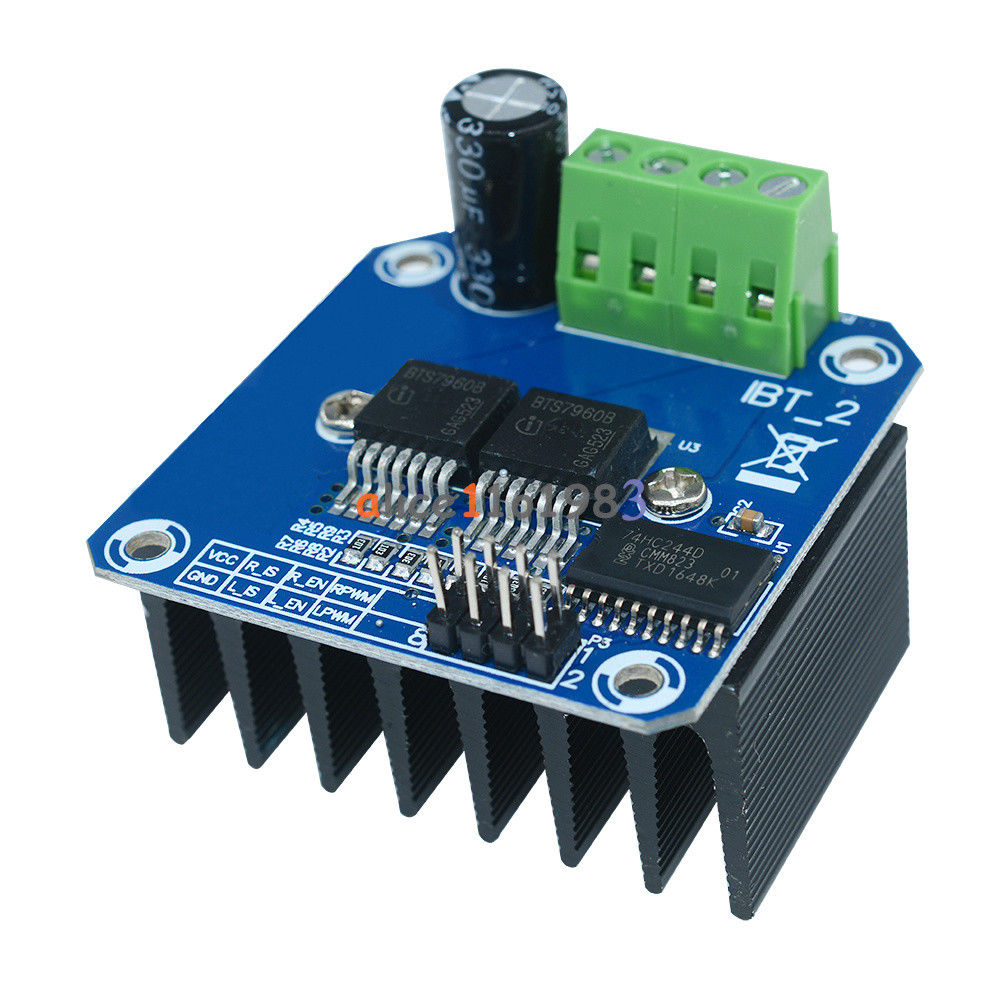

Double BTS7960B DC 43A Stepper Motor Driver H-Bridge PWM


  • Double BTS7960 large current (43 A) H bridge driver;
  • 5V isolate with MCU, and effectively protect MCU;
  • 5V power indicator on board;
  • voltage indication of motor driver output end;
  • can solder heat sink;
  • Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2);
  • isolation chip 5 V power supply (can share with MCU 5 V);
  • Size: 4 * 5 * 1.2 cm;
  • Able to reverse the motor forward, two PWM input frequency up to 25kHZ;
  • two heat flow passing through an error signal output;
  • isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply;
  • the supply voltage 5.5V to 27V
