4-Bit DC 0-200V 10A Voltmeter Ammeter Blue+Red LED Amp Dual Volt Meter Gauge


Description:
1. It is with high precision and four digital displays.
2. Working Voltage: DC 4V-28V
3. Working Current: <20mA
4. Display: about 0.28 inches
5. Two Color: blue and red
6. Measuring range: DC 0-200V 0-10A
7. It is with built-in shunt.
8. Refresh Rate: about 1 S / 3 times
9. Measure Accuracy:
Operating Temperature: -10° c-65° c
Working Pressure: 80kPa-106 kPa
10. Size: about 48 * 29 * 20 mm / 1.89 * 1.14 * 0.79 inches
11. Current: range * 0.08% + two digits
12. Voltage: range * 0.08% + two digits

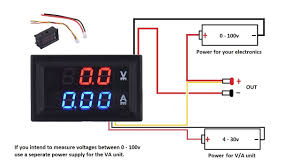

Example
