1N58xx Schottky diode

The 1N58xx is a series of medium power, fast, low voltage Schottky diodes, which consists of part number numbers 1N5817 through 1N5825

The 1N581x are typically packaged in the DO-41 axial through-hole case, and in many cases are interchangeable with the 1N4001 series. The 1N582x are typically packaged in the DO-201AD through-hole case, and in many cases are interchangeable with the 1N54xx series.

Being Schottky diodes, the 1N58xx parts have roughly half the forward voltage drop of the 1N400x/1N540x series diodes, which improves efficiency in applications where they are usually forward-biased, such as power converters. The cost is a lower voltage rating and higher reverse leakage (approximately 1 mA at room temperature and increasing with temperature).

Common surface-mount relatives of the 1N58xx series are the SS1x and SS3x series, such the SS14 (1 ampere) and SS34 (3 ampere) surface-mount parts.


Diode part numbers
VoltageThru-holeSurface-mount
1 Amp3 Amp5 Amp1 Amp3 Amp5 Amp
(DO-41)(DO-201AD)(TopHat)(SMA)(SMC)(SMC)
20 Volt1N58171N58201N5823SS12SS32SS52
30 Volt1N58181N58211N5824SS13SS33SS53
40 Volt1N58191N58221N5825SS14SS34SS54
50 VoltSS15SS35
60 VoltSS16SS36
80 VoltSS18SS38
100 VoltSS110SS310

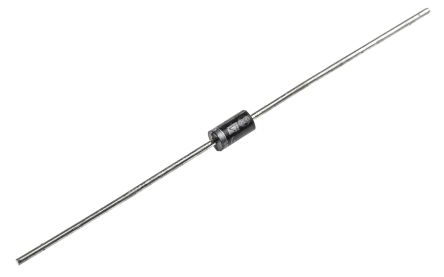

DO-41

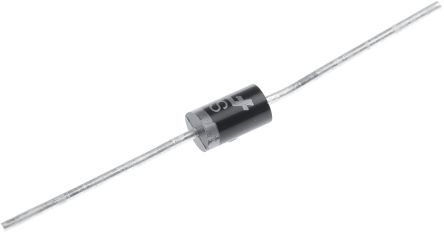

DO-210AD

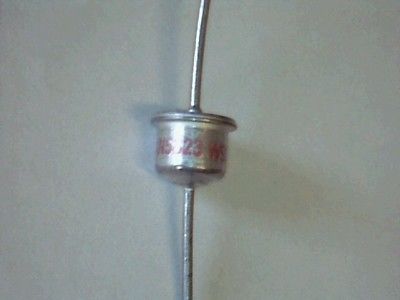

TopHat
