Red on light and flashing red LED light

New arduino and the LED light is red on and the other is flashing red.


If you got a new arduino, its normal. All Arduinos come with a preloaded blink sketch, and the 'L' led is actually connected to Digital Pin 13.


Arduino Nano problem uploading sketch
Sketch uses 1510 bytes (4%) of program storage space. Maximum is 30720 bytes.
Global variables use 184 bytes (8%) of dynamic memory, leaving 1864 bytes for local variables. Maximum is 2048 bytes.
An error occurred while uploading the sketch
avrdude: ser_open(): can't open device "\\.\COM5": The system cannot find the file specified.

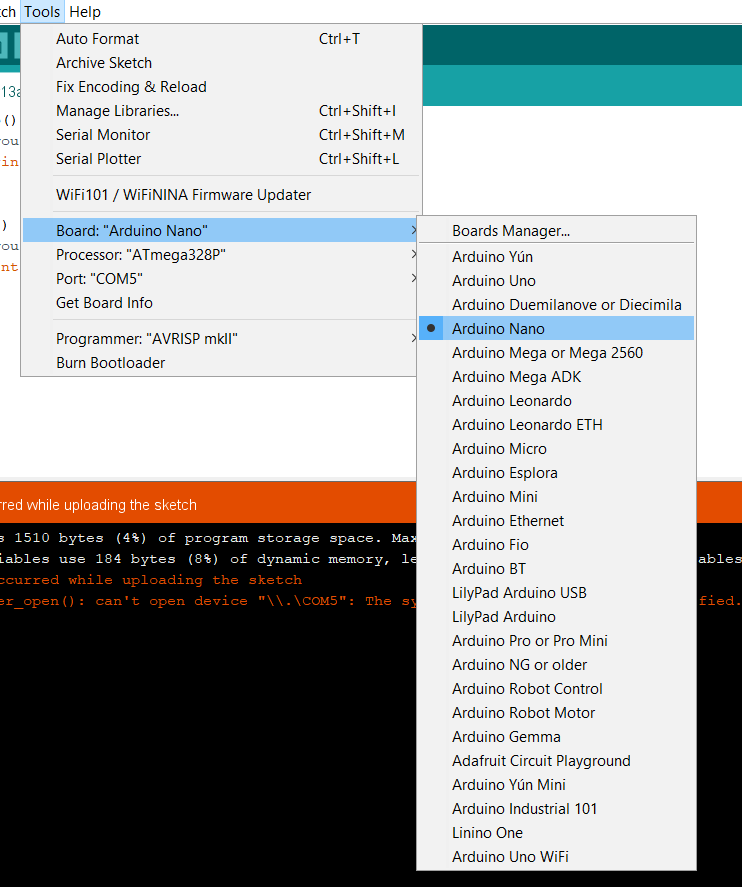

Check what board is selected.

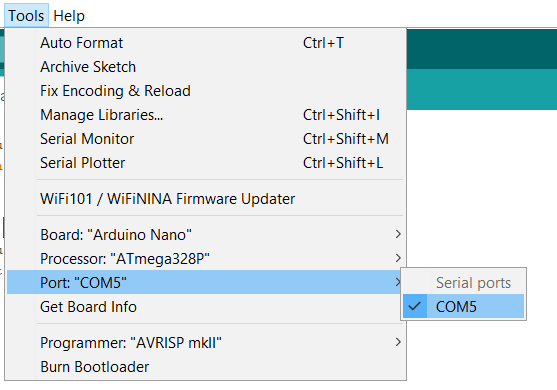

Check Com-port

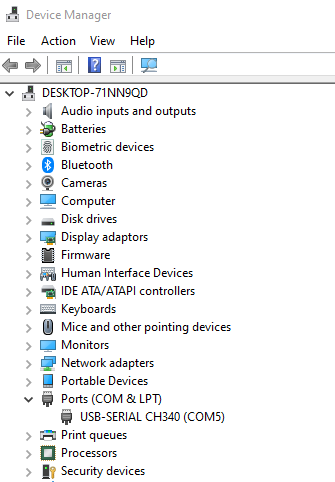

Check Com=port in Device manager

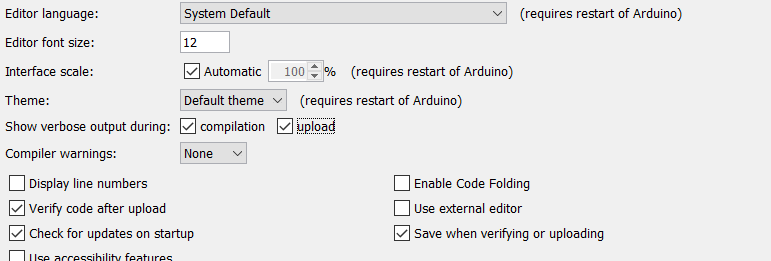

Setting for more error output.
File, Preferences
Show verbose output during.


Output upload:
C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\arduino-builder -dump-prefs -logger=machine -hardware C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware -tools C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\tools-builder -tools C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -built-in-libraries C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\libraries -libraries C:\Users\kees\Documents\Arduino\libraries -fqbn=arduino:avr:nano:cpu=atmega328 -vid-pid=1A86_7523 -ide-version=10813 -build-path C:\Users\kees\AppData\Local\Temp\arduino_build_276932 -warnings=none -build-cache C:\Users\kees\AppData\Local\Temp\arduino_cache_352807 -prefs=build.warn_data_percentage=75 -prefs=runtime.tools.arduinoOTA.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.arduinoOTA-1.3.0.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avr-gcc.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avr-gcc-7.3.0-atmel3.6.1-arduino7.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avrdude.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avrdude-6.3.0-arduino17.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -verbose C:\Users\kees\Documents\Arduino\sketch_nov13a\sketch_nov13a.ino
C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\arduino-builder -compile -logger=machine -hardware C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware -tools C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\tools-builder -tools C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -built-in-libraries C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\libraries -libraries C:\Users\kees\Documents\Arduino\libraries -fqbn=arduino:avr:nano:cpu=atmega328 -vid-pid=1A86_7523 -ide-version=10813 -build-path C:\Users\kees\AppData\Local\Temp\arduino_build_276932 -warnings=none -build-cache C:\Users\kees\AppData\Local\Temp\arduino_cache_352807 -prefs=build.warn_data_percentage=75 -prefs=runtime.tools.arduinoOTA.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.arduinoOTA-1.3.0.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avr-gcc.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avr-gcc-7.3.0-atmel3.6.1-arduino7.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avrdude.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avrdude-6.3.0-arduino17.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -verbose C:\Users\kees\Documents\Arduino\sketch_nov13a\sketch_nov13a.ino
Using board 'nano' from platform in folder: C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\arduino\avr
Using core 'arduino' from platform in folder: C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\arduino\avr
Detecting libraries used...
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-g++" -c -g -Os -w -std=gnu++11 -fpermissive -fno-exceptions -ffunction-sections -fdata-sections -fno-threadsafe-statics -Wno-error=narrowing -flto -w -x c++ -E -CC -mmcu=atmega328p -DF_CPU=16000000L -DARDUINO=10813 -DARDUINO_AVR_NANO -DARDUINO_ARCH_AVR "-IC:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\arduino\\avr\\cores\\arduino" "-IC:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\arduino\\avr\\variants\\eightanaloginputs" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\sketch\\sketch_nov13a.ino.cpp" -o nul -DARDUINO_LIB_DISCOVERY_PHASE
Generating function prototypes...
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-g++" -c -g -Os -w -std=gnu++11 -fpermissive -fno-exceptions -ffunction-sections -fdata-sections -fno-threadsafe-statics -Wno-error=narrowing -flto -w -x c++ -E -CC -mmcu=atmega328p -DF_CPU=16000000L -DARDUINO=10813 -DARDUINO_AVR_NANO -DARDUINO_ARCH_AVR "-IC:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\arduino\\avr\\cores\\arduino" "-IC:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\arduino\\avr\\variants\\eightanaloginputs" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\sketch\\sketch_nov13a.ino.cpp" -o "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\preproc\\ctags_target_for_gcc_minus_e.cpp" -DARDUINO_LIB_DISCOVERY_PHASE
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\tools-builder\\ctags\\5.8-arduino11/ctags" -u --language-force=c++ -f - --c++-kinds=svpf --fields=KSTtzns --line-directives "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\preproc\\ctags_target_for_gcc_minus_e.cpp"
Compiling sketch...
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-g++" -c -g -Os -w -std=gnu++11 -fpermissive -fno-exceptions -ffunction-sections -fdata-sections -fno-threadsafe-statics -Wno-error=narrowing -MMD -flto -mmcu=atmega328p -DF_CPU=16000000L -DARDUINO=10813 -DARDUINO_AVR_NANO -DARDUINO_ARCH_AVR "-IC:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\arduino\\avr\\cores\\arduino" "-IC:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\arduino\\avr\\variants\\eightanaloginputs" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\sketch\\sketch_nov13a.ino.cpp" -o "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\sketch\\sketch_nov13a.ino.cpp.o"
Compiling libraries...
Compiling core...
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\wiring_pulse.S.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\hooks.c.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\wiring_pulse.c.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\wiring_analog.c.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\wiring.c.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\WInterrupts.c.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\wiring_shift.c.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\wiring_digital.c.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\PluggableUSB.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\HardwareSerial2.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\HardwareSerial.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\HardwareSerial1.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\IPAddress.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\HardwareSerial0.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\CDC.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\HardwareSerial3.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\Tone.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\Stream.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\WMath.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\WString.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\Print.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\USBCore.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\abi.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\main.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\new.cpp.o
Using previously compiled file: C:\Users\kees\AppData\Local\Temp\arduino_build_276932\core\core.a
Archiving built core (caching) in: C:\Users\kees\AppData\Local\Temp\arduino_cache_352807\core\core_arduino_avr_nano_cpu_atmega328_d72cf7820821928d7aba3a85f82dacbf.a
Linking everything together...
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-gcc" -w -Os -g -flto -fuse-linker-plugin -Wl,--gc-sections -mmcu=atmega328p -o "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/sketch_nov13a.ino.elf" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\sketch\\sketch_nov13a.ino.cpp.o" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/core\\core.a" "-LC:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932" -lm
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-objcopy" -O ihex -j .eeprom --set-section-flags=.eeprom=alloc,load --no-change-warnings --change-section-lma .eeprom=0 "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/sketch_nov13a.ino.elf" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/sketch_nov13a.ino.eep"
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-objcopy" -O ihex -R .eeprom "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/sketch_nov13a.ino.elf" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/sketch_nov13a.ino.hex"
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-size" -A "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/sketch_nov13a.ino.elf"
Sketch uses 1510 bytes (4%) of program storage space. Maximum is 30720 bytes.
Global variables use 184 bytes (8%) of dynamic memory, leaving 1864 bytes for local variables. Maximum is 2048 bytes.
C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr/bin/avrdude -CC:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr/etc/avrdude.conf -v -patmega328p -carduino -PCOM5 -b115200 -D -Uflash:w:C:\Users\kees\AppData\Local\Temp\arduino_build_276932/sketch_nov13a.ino.hex:i

avrdude: Version 6.3-20190619
         Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/
         Copyright (c) 2007-2014 Joerg Wunsch

         System wide configuration file is "C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr/etc/avrdude.conf"

         Using Port                    : COM5
         Using Programmer              : arduino
         Overriding Baud Rate          : 115200
avrdude: stk500_getsync() attempt 1 of 10: not in sync: resp=0x00
avrdude: stk500_getsync() attempt 2 of 10: not in sync: resp=0x00
avrdude: stk500_getsync() attempt 3 of 10: not in sync: resp=0x00
avrdude: stk500_getsync() attempt 4 of 10: not in sync: resp=0x00
avrdude: stk500_getsync() attempt 5 of 10: not in sync: resp=0x00
avrdude: stk500_getsync() attempt 6 of 10: not in sync: resp=0x00
avrdude: stk500_getsync() attempt 7 of 10: not in sync: resp=0x00
avrdude: stk500_getsync() attempt 8 of 10: not in sync: resp=0x00
avrdude: stk500_getsync() attempt 9 of 10: not in sync: resp=0x00
avrdude: stk500_getsync() attempt 10 of 10: not in sync: resp=0x00


Select processor 'ATmega328P' (Old Bootloader).

C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\arduino-builder -dump-prefs -logger=machine -hardware C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware -tools C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\tools-builder -tools C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -built-in-libraries C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\libraries -libraries C:\Users\kees\Documents\Arduino\libraries -fqbn=arduino:avr:nano:cpu=atmega328old -vid-pid=1A86_7523 -ide-version=10813 -build-path C:\Users\kees\AppData\Local\Temp\arduino_build_276932 -warnings=none -build-cache C:\Users\kees\AppData\Local\Temp\arduino_cache_352807 -prefs=build.warn_data_percentage=75 -prefs=runtime.tools.arduinoOTA.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.arduinoOTA-1.3.0.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avr-gcc.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avr-gcc-7.3.0-atmel3.6.1-arduino7.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avrdude.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avrdude-6.3.0-arduino17.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -verbose C:\Users\kees\Documents\Arduino\sketch_nov13a\sketch_nov13a.ino
C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\arduino-builder -compile -logger=machine -hardware C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware -tools C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\tools-builder -tools C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -built-in-libraries C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\libraries -libraries C:\Users\kees\Documents\Arduino\libraries -fqbn=arduino:avr:nano:cpu=atmega328old -vid-pid=1A86_7523 -ide-version=10813 -build-path C:\Users\kees\AppData\Local\Temp\arduino_build_276932 -warnings=none -build-cache C:\Users\kees\AppData\Local\Temp\arduino_cache_352807 -prefs=build.warn_data_percentage=75 -prefs=runtime.tools.arduinoOTA.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.arduinoOTA-1.3.0.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avr-gcc.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avr-gcc-7.3.0-atmel3.6.1-arduino7.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avrdude.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -prefs=runtime.tools.avrdude-6.3.0-arduino17.path=C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr -verbose C:\Users\kees\Documents\Arduino\sketch_nov13a\sketch_nov13a.ino
Using board 'nano' from platform in folder: C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\arduino\avr
Using core 'arduino' from platform in folder: C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\arduino\avr
Detecting libraries used...
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-g++" -c -g -Os -w -std=gnu++11 -fpermissive -fno-exceptions -ffunction-sections -fdata-sections -fno-threadsafe-statics -Wno-error=narrowing -flto -w -x c++ -E -CC -mmcu=atmega328p -DF_CPU=16000000L -DARDUINO=10813 -DARDUINO_AVR_NANO -DARDUINO_ARCH_AVR "-IC:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\arduino\\avr\\cores\\arduino" "-IC:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\arduino\\avr\\variants\\eightanaloginputs" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\sketch\\sketch_nov13a.ino.cpp" -o nul -DARDUINO_LIB_DISCOVERY_PHASE
Generating function prototypes...
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-g++" -c -g -Os -w -std=gnu++11 -fpermissive -fno-exceptions -ffunction-sections -fdata-sections -fno-threadsafe-statics -Wno-error=narrowing -flto -w -x c++ -E -CC -mmcu=atmega328p -DF_CPU=16000000L -DARDUINO=10813 -DARDUINO_AVR_NANO -DARDUINO_ARCH_AVR "-IC:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\arduino\\avr\\cores\\arduino" "-IC:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\arduino\\avr\\variants\\eightanaloginputs" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\sketch\\sketch_nov13a.ino.cpp" -o "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\preproc\\ctags_target_for_gcc_minus_e.cpp" -DARDUINO_LIB_DISCOVERY_PHASE
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\tools-builder\\ctags\\5.8-arduino11/ctags" -u --language-force=c++ -f - --c++-kinds=svpf --fields=KSTtzns --line-directives "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\preproc\\ctags_target_for_gcc_minus_e.cpp"
Compiling sketch...
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-g++" -c -g -Os -w -std=gnu++11 -fpermissive -fno-exceptions -ffunction-sections -fdata-sections -fno-threadsafe-statics -Wno-error=narrowing -MMD -flto -mmcu=atmega328p -DF_CPU=16000000L -DARDUINO=10813 -DARDUINO_AVR_NANO -DARDUINO_ARCH_AVR "-IC:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\arduino\\avr\\cores\\arduino" "-IC:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\arduino\\avr\\variants\\eightanaloginputs" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\sketch\\sketch_nov13a.ino.cpp" -o "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\sketch\\sketch_nov13a.ino.cpp.o"
Compiling libraries...
Compiling core...
Using precompiled core: C:\Users\kees\AppData\Local\Temp\arduino_cache_352807\core\core_arduino_avr_nano_cpu_atmega328old_d72cf7820821928d7aba3a85f82dacbf.a
Linking everything together...
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-gcc" -w -Os -g -flto -fuse-linker-plugin -Wl,--gc-sections -mmcu=atmega328p -o "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/sketch_nov13a.ino.elf" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932\\sketch\\sketch_nov13a.ino.cpp.o" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/..\\arduino_cache_352807\\core\\core_arduino_avr_nano_cpu_atmega328old_d72cf7820821928d7aba3a85f82dacbf.a" "-LC:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932" -lm
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-objcopy" -O ihex -j .eeprom --set-section-flags=.eeprom=alloc,load --no-change-warnings --change-section-lma .eeprom=0 "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/sketch_nov13a.ino.elf" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/sketch_nov13a.ino.eep"
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-objcopy" -O ihex -R .eeprom "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/sketch_nov13a.ino.elf" "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/sketch_nov13a.ino.hex"
"C:\\Program Files\\WindowsApps\\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\\hardware\\tools\\avr/bin/avr-size" -A "C:\\Users\\kees\\AppData\\Local\\Temp\\arduino_build_276932/sketch_nov13a.ino.elf"
Sketch uses 1510 bytes (4%) of program storage space. Maximum is 30720 bytes.
Global variables use 184 bytes (8%) of dynamic memory, leaving 1864 bytes for local variables. Maximum is 2048 bytes.
C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr/bin/avrdude -CC:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr/etc/avrdude.conf -v -patmega328p -carduino -PCOM5 -b57600 -D -Uflash:w:C:\Users\kees\AppData\Local\Temp\arduino_build_276932/sketch_nov13a.ino.hex:i

avrdude: Version 6.3-20190619
         Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/
         Copyright (c) 2007-2014 Joerg Wunsch

         System wide configuration file is "C:\Program Files\WindowsApps\ArduinoLLC.ArduinoIDE_1.8.42.0_x86__mdqgnx93n4wtt\hardware\tools\avr/etc/avrdude.conf"

         Using Port                    : COM5
         Using Programmer              : arduino
         Overriding Baud Rate          : 57600
         AVR Part                      : ATmega328P
         Chip Erase delay              : 9000 us
         PAGEL                         : PD7
         BS2                           : PC2
         RESET disposition             : dedicated
         RETRY pulse                   : SCK
         serial program mode           : yes
         parallel program mode         : yes
         Timeout                       : 200
         StabDelay                     : 100
         CmdexeDelay                   : 25
         SyncLoops                     : 32
         ByteDelay                     : 0
         PollIndex                     : 3
         PollValue                     : 0x53
         Memory Detail                 :

                                  Block Poll               Page                       Polled
           Memory Type Mode Delay Size  Indx Paged  Size   Size #Pages MinW  MaxW   ReadBack
           ----------- ---- ----- ----- ---- ------ ------ ---- ------ ----- ----- ---------
           eeprom        65    20     4    0 no       1024    4      0  3600  3600 0xff 0xff
           flash         65     6   128    0 yes     32768  128    256  4500  4500 0xff 0xff
           lfuse          0     0     0    0 no          1    0      0  4500  4500 0x00 0x00
           hfuse          0     0     0    0 no          1    0      0  4500  4500 0x00 0x00
           efuse          0     0     0    0 no          1    0      0  4500  4500 0x00 0x00
           lock           0     0     0    0 no          1    0      0  4500  4500 0x00 0x00
           calibration    0     0     0    0 no          1    0      0     0     0 0x00 0x00
           signature      0     0     0    0 no          3    0      0     0     0 0x00 0x00

         Programmer Type : Arduino
         Description     : Arduino
         Hardware Version: 2
         Firmware Version: 1.16
         Vtarget         : 0.0 V
         Varef           : 0.0 V
         Oscillator      : Off
         SCK period      : 0.1 us

avrdude: AVR device initialized and ready to accept instructions

Reading | ################################################## | 100% 0.00s

avrdude: Device signature = 0x1e950f (probably m328p)
avrdude: reading input file "C:\Users\kees\AppData\Local\Temp\arduino_build_276932/sketch_nov13a.ino.hex"
avrdude: writing flash (1510 bytes):

Writing | ################################################## | 100% 0.43s

avrdude: 1510 bytes of flash written
avrdude: verifying flash memory against C:\Users\kees\AppData\Local\Temp\arduino_build_276932/sketch_nov13a.ino.hex:
avrdude: load data flash data from input file C:\Users\kees\AppData\Local\Temp\arduino_build_276932/sketch_nov13a.ino.hex:
avrdude: input file C:\Users\kees\AppData\Local\Temp\arduino_build_276932/sketch_nov13a.ino.hex contains 1510 bytes
avrdude: reading on-chip flash data:

Reading | ################################################## | 100% 0.32s

avrdude: verifying ...
avrdude: 1510 bytes of flash verified

avrdude done.  Thank you.
