NodeMCU32 WRoom



ESP32-WROOM-32 is a powerful, generic Wi-Fi+BT+BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.

At the core of this module is the ESP32-D0WDQ6 chip*. The chip embedded is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80 MHz to 240 MHz. The user may also power off the CPU and make use of the low-power co-processor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S and I2C.

The integration of Bluetooth, Bluetooth LE and Wi-Fi ensures that a wide range of applications can be targeted, and that the module is future proof: using Wi-Fi allows a large physical range and direct connection to the internet through a Wi-Fi router, while using Bluetooth allows the user to conveniently connect to the phone or broadcast low energy beacons for its detection. The sleep current of the ESP32 chip is less than 5 μA, making it suitable for battery powered and wearable electronics applications. ESP32 supports a data rate of up to 150 Mbps, and 20.5 dBm output power at the antenna to ensure the widest physical range. As such the chip does offer industry-leading specifications and the best performance for electronic integration, range, power consumption, and connectivity. The operating system chosen for ESP32 is freeRTOS with LwIP; TLS 1.2 with hardware acceleration is built in as well. Secure (encrypted) over the air (OTA) upgrade is also supported, so that developers can continually upgrade their products even after their release.

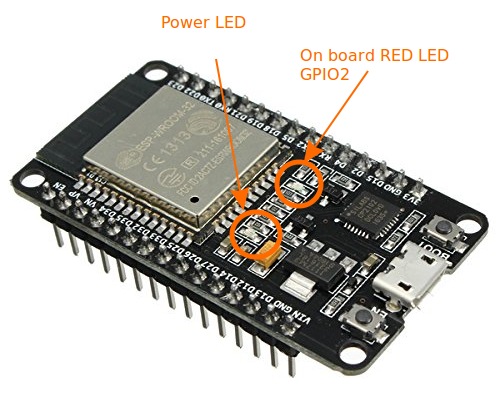

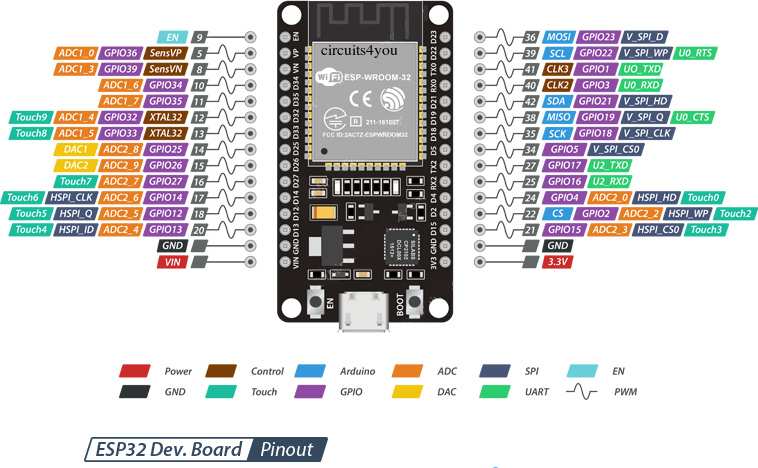

Pinout:

Features

  • 18 Analog-to-Digital Converter (ADC) channels
  • 10 Capacitive sensing GPIOs
  • 3 UART interfaces
  • 3 SPI interfaces
  • 2 I2C interfaces
  • 16 PWM output channels
  • 2 Digital-to-Analog Converters (DAC)
  • 2 I2S interfaces

GPIO Pins:

ESP32 Wroom32 DevKit has total 25 GPIOs out of that few pins are Input only Pins
Input Only Pins:

  • GPIO 34
  • GPIO 35
  • GPIO 36
  • GPIO 39
Not all pins have input pullup, you need external pullup on these pins when using as input pullup.
Pins with internal pull up INPUT_PULLUP
  • GPIO14
  • GPIO16
  • GPIO17
  • GPIO18
  • GPIO19
  • GPIO21
  • GPIO22
  • GPIO23
Pins without internal pull up
  • GPIO13
  • GPIO25
  • GPIO26
  • GPIO27
  • GPIO32
  • GPIO33
Examples:
pinMode(22,INPUT_PULLUP);
pinMode(23,OUTPUT);
digitalWrite(23,HIGH);

Analog Input Pins:
Note that only a subset of ADC pins and functions are exposed. First, the supplied drivers expose only ADC1. The board layout of the ESP32-DevKitC only exposes some of the pins. Specifically, the following are exposed: ADC1_CH0 , ADC1_CH3 , ADC1_CH4 , ADC1_CH5 , ADC1_CH6 and ADC1_CH7 .
Analog to digital conversion is the ability to read a voltage level found on a pin between 0 and some maximum value and convert that analog value into a digital representation. Varying the voltage applied to the pin will change the value read. The ESP32 has an analog to digital converter built into it with a resolution of up to 12 bits which is 4096 distinct values. What that means is that 0 volts will produce a digital value of 0 while the maximum voltage will produce a digital value of 4095 and voltage ranges between these will produce a correspondingly scaled digital value.
One of the properties on the analog to digital converter channels is attenuation. This is a voltage scaling factor. Normally the input range is 0-1V but with different attenuations we can scale the input voltage into this range. The available scales beyond the 0-1V include 0-1.34V, 0-2V and 0-3.6V.

Capacitive touch GPIOs

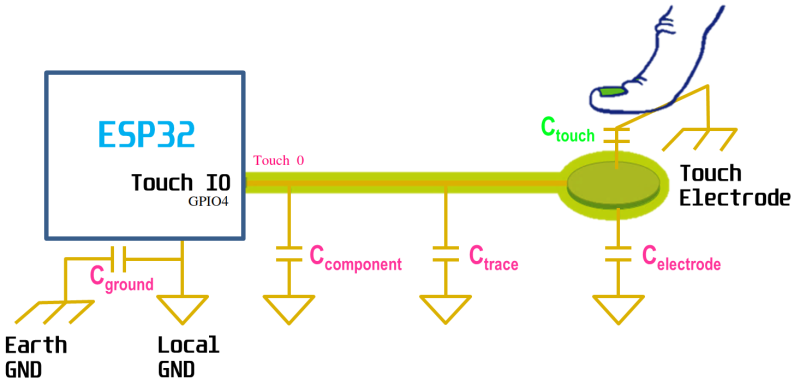

The ESP32 has 10 internal capacitive touch sensors. These can sense variations in anything that holds an electrical charge, like the human skin. So they can detect variations induced when touching the GPIOs with a finger. These pins can be easily integrated into capacitive pads, and replace mechanical buttons. The capacitive touch pins can also be used to wake up the ESP32 from deep sleep.
Those internal touch sensors are connected to these GPIOs:

  • T0 (GPIO 4)
  • T1 (GPIO 0)
  • T2 (GPIO 2)
  • T3 (GPIO 15)
  • T4 (GPIO 13)
  • T5 (GPIO 12)
  • T6 (GPIO 14)
  • T7 (GPIO 27)
  • T8 (GPIO 33)
  • T9 (GPIO 32)
Example:

                byte touch;

                void setup() {
                    Serial.begin(115200);

                    touch_pad_filter_start(T0);
                    touch_pad_set_filter_period(T0);
                }

                void loop() {
                    touch= touchRead(T0);
                    Serial.println(touch);
                    delay(100);
                }


Digital to Analog Converter (DAC)
There are 2 x 8 bits DAC channels on the ESP32 to convert digital signals into analog voltage signal outputs. These are the DAC channels:

  • DAC1 (GPIO25)
  • DAC2 (GPIO26)
Example
                #define DAC1 25

                void setup() {
                  Serial.begin(115200);

                }

                void loop() { // Generate a Sine wave
                  int Value = 255; //255= 3.3V 128=1.65V

                  dacWrite(DAC1, Value);
                  delay(1000);
                }

To check the output voltage simply connect Voltmeter at pin 25 and GND of ESP32.

RTC GPIOs
There is RTC GPIO support on the ESP32. The GPIOs routed to the RTC low-power subsystem can be used when the ESP32 is in deep sleep. These RTC GPIOs can be used to wake up the ESP32 from deep sleep when the Ultra Low Power (ULP) co-processor is running. The following GPIOs can be used as an external wake up source.

  • RTC_GPIO0 (GPIO36)
  • RTC_GPIO3 (GPIO39)
  • RTC_GPIO4 (GPIO34)
  • RTC_GPIO5 (GPIO35)
  • RTC_GPIO6 (GPIO25)
  • RTC_GPIO7 (GPIO26)
  • RTC_GPIO8 (GPIO33)
  • RTC_GPIO9 (GPIO32)
  • RTC_GPIO10 (GPIO4)
  • RTC_GPIO11 (GPIO0)
  • RTC_GPIO12 (GPIO2)
  • RTC_GPIO13 (GPIO15)
  • RTC_GPIO14 (GPIO13)
  • RTC_GPIO15 (GPIO12)
  • RTC_GPIO16 (GPIO14)
  • RTC_GPIO17 (GPIO27)

PWM
The ESP32 LED PWM controller has 16 independent channels that can be configured to generate PWM signals with different properties. All pins that can act as outputs can be used as PWM pins (Input only pin GPIOs 34 to 39 can’t generate PWM).
To set a PWM signal, you need to define these parameters in the code:

  • Signal’s frequency
  • Duty cycle
  • PWM channel
  • GPIO where you want to output the signal
                #define LED 2 //On Board LED

                int brightness = 0;    // how bright the LED is
                int fadeAmount = 5;    // how many points to fade the LED by

                // setting PWM properties
                const int freq = 5000;
                const int ledChannel = 0;
                const int resolution = 10; //Resolution 8, 10, 12, 15

               void setup() {
                  Serial.begin(115200);
                  pinMode(LED,OUTPUT);

                  // configure LED PWM functionalitites
                  ledcSetup(ledChannel, freq, resolution);

                  // attach the channel to the GPIO2 to be controlled
                  ledcAttachPin(LED, ledChannel);
                }

                void loop() {
                  //PWM Value varries from 0 to 1023
                  Serial.println("10 % PWM");
                  ledcWrite(ledChannel, 102);
                  delay(2000);

                  Serial.println("20 % PWM");
                  ledcWrite(ledChannel,205);
                  delay(2000);

                  Serial.println("40 % PWM");
                  ledcWrite(ledChannel,410);
                  delay(2000);

                  Serial.println("70 % PWM");
                  ledcWrite(ledChannel,714);
                  delay(2000);

                  Serial.println("100 % PWM");
                  ledcWrite(ledChannel,1024);
                  delay(2000);

                  //Continuous Fading
                  Serial.println("Fadding Started");
                  while(1)
                  {
                    // set the brightness of pin 2:
                    ledcWrite(ledChannel, brightness);

                    // change the brightness for next time through the loop:
                    brightness = brightness + fadeAmount;

                    // reverse the direction of the fading at the ends of the fade:
                    if (brightness <= 0 || brightness >= 1023) {
                      fadeAmount = -fadeAmount;
                    }
                    // wait for 30 milliseconds to see the dimming effect
                    delay(10);
                  }
                }


Serial
ESP32 has three serial ports
First Serial RX0, TX0 is used for programming

  • GPIO3 (U0RXD)
  • GPIO1 (U0TXD)
Another Serial port is available on. When programming it is named as Serial2.
  • GPIO16 (U2RXD)
  • GIIO17 (U2TXD)
Example
This program reads data from serial2 and sends to serial0 i.e. programming serial. Multiple serial is useful when using GPS and GSM systems together.
                #define RXD2 16
                #define TXD2 17

                void setup() {
                  // Note the format for setting a serial port is as follows: Serial2.begin(baud-rate, protocol, RX pin, TX pin);
                  Serial.begin(115200);
                  //Serial1.begin(9600, SERIAL_8N1, RXD2, TXD2);
                  Serial2.begin(9600, SERIAL_8N1, RXD2, TXD2);
                  Serial.println("Serial Txd is on pin: "+String(TX));
                  Serial.println("Serial Rxd is on pin: "+String(RX));
                }

                void loop() { //Choose Serial1 or Serial2 as required
                  while (Serial2.available()) {
                    Serial.print(char(Serial2.read()));
                  }
                }


I2C
When using the ESP32 with the Arduino IDE, you should use the ESP32 I2C default pins (supported by the Wire library):

  • GPIO 21 (SDA)
  • GPIO 22 (SCL)

SPI
By default, the pin mapping for SPI is:

SPIMOSIMISOCLKCS
VSPIGPIO 23GPIO 19GPIO 18GPIO 5
HSPIGPIO 13GPIO 12GPIO 14GPIO 15

Interrupts
All GPIOs can be configured as interrupts.

Enable (EN)
Enable (EN) is the 3.3V regulator’s enable pin. It’s pulled up, so connect to ground to disable the 3.3V regulator. This means that you can use this pin connected to a pushbutton to restart your ESP32.

GPIO current drawn
The absolute maximum current drawn per GPIO is source 40mA and sink 28mAmp according to the “Recommended Operating Conditions” section in the ESP32 datasheet.

Arduino IDE

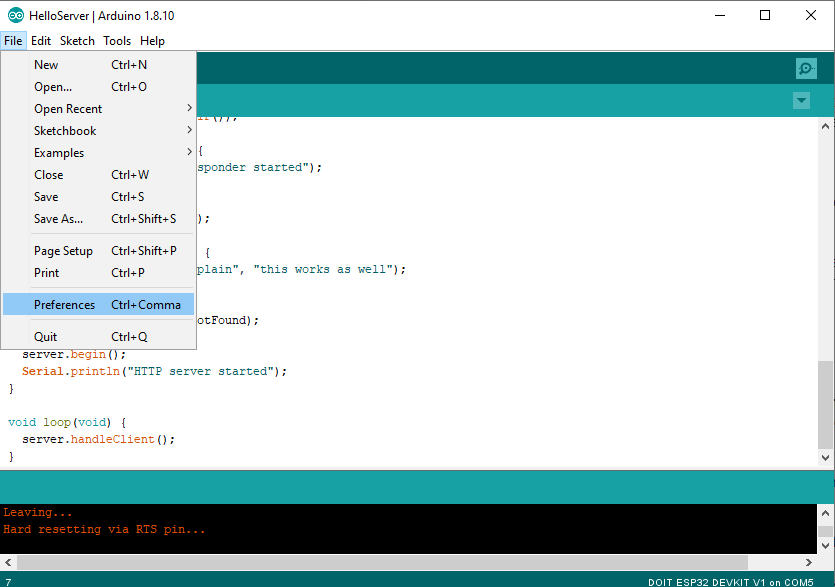

Go to File > Preferences:

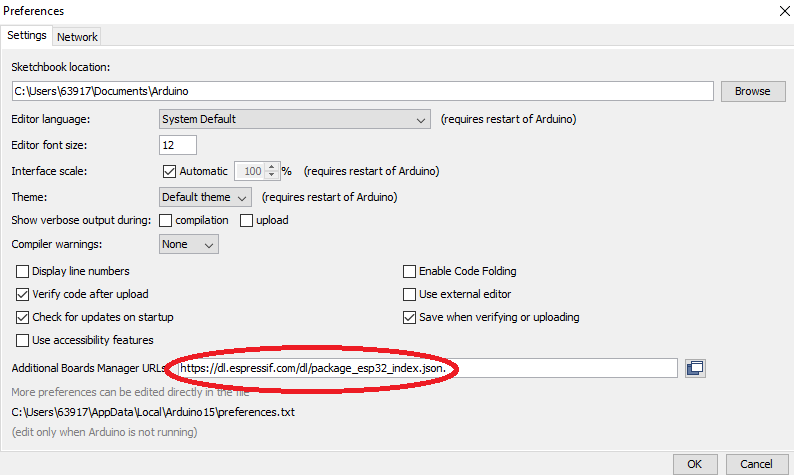

On the additional boards manager field, paste:
https://dl.espressif.com/dl/package_esp32_index.json.
Click OK.
If you already have other board definitions, click the button on the right of the text field and add the json file url above on the next row.

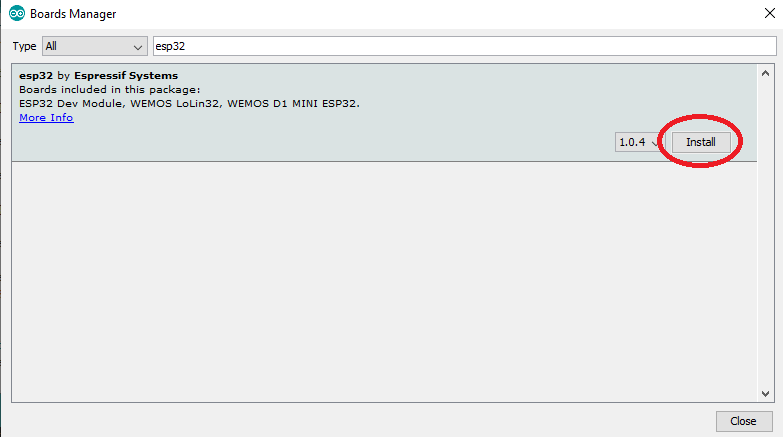

Next, go to Tools > Board > Boards Manager. On the search field, type "ESP32". One result should appear. Click the install button.

Once the board information is installed, you can now start using the device.

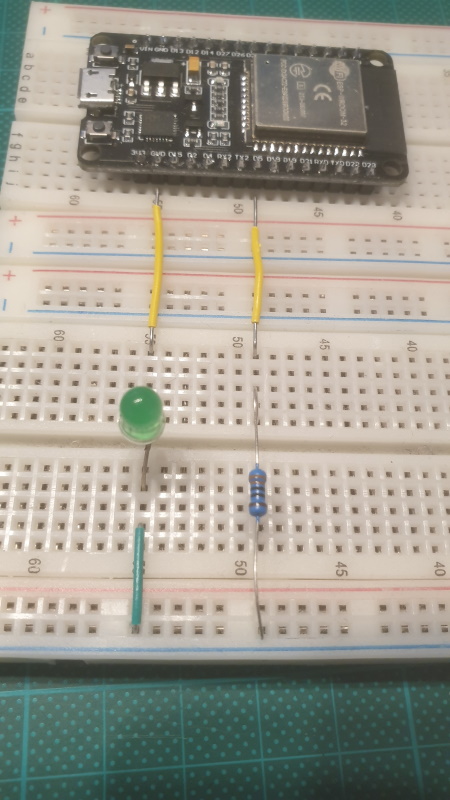

Sketch

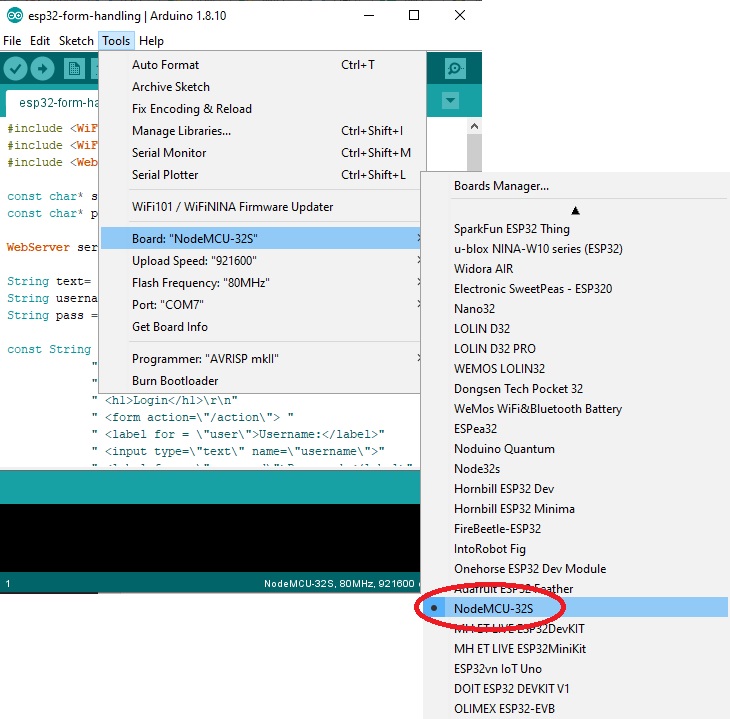

Before we can upload an Arduino sketch to the board, we must select the correct ESP32 development board as there are dozens of them. This tutorial uses the NodeMCU-32S board and it's among the options:



int LED = 5;

const unsigned long eventInterval = 500;
unsigned long previousTime = 0;
bool isOn = false;

void setup() {
  pinMode(LED, OUTPUT);
  digitalWrite(LED, LOW);
}

void loop() {
    unsigned long currentTime = millis();

    if (currentTime - previousTime >= eventInterval) {
      digitalWrite(LED, isOn=!isOn);
      previousTime = currentTime;
    }
}

Upload the Sketch
