IBT-2



IBT-2, HIGH CURRENT 30A, DC MOTOR DRIVER

This driver uses two high current half bridge Infineon BTS 7960 chip for motor drive applications. Interfacing to a microcontroller is made easy using this driver which features current sensing, slew rate adjustment and protection against overn temperature, overvoltage, undern voltage, Overn current and shortcircuit.
This small size driver provides a cost optimized solution for protected high current PWM motor drives.

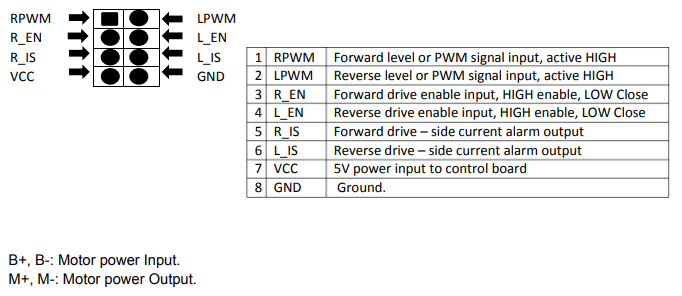

• Operating Voltage 5 to 27V (B+)
• Control motor speed by PWM up to 25 kHz.
• Motor forward and backward motion control
• Switched mode current limitation for reduced power dissipation.
• Current limitation level of 30 A Current sense capability
• Over'temperature shut down Over'voltage lock out.
• Large size heat sink is mounted to driver.
• Size: 4*5*1.2 cm.
• Weight: 66 gm.
