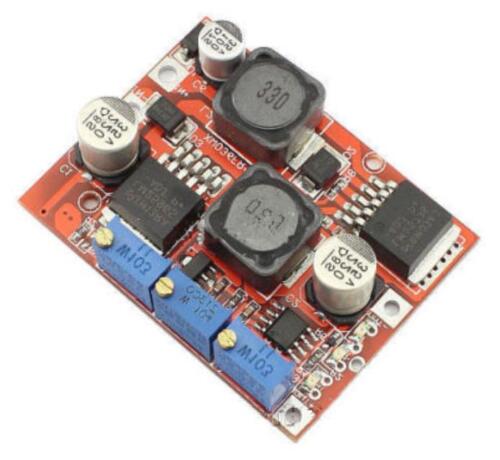

Step Up Down Boost buck Voltage Converter Module LM2577S LM2596S



  • Input Voltage :4-35V
  • Output voltage: Continuously adjustable(1.25-25V unload adjust)
  • Output current: 3A Max(If more than 15W, please install the heat sink)
  • CC range :0-2A (adjustable)
  • Revolving light current: CC value * (1%-100%), default is 0.1 times
  • Minimum voltage difference: 2V
  • Output power: natural cooling 15W
  • Conversion efficiency: 80% (the higher the output voltage, the higher the efficiency)
  • Operating Temperature: Industrial (-40 ℃ to +85 ℃) (ambient temperature more than 40℃, lower power use, or add heat sink)
  • Full load temperature rise: 45 ℃
  • Indicator: CC indicator is Red, charging indicator is Red, charging completed the indicator is Blue.
  • Output short circuit protection: Yes, constant current.
  • Connect method: Can solder on the PCB with wire directly
  • Input: IN+ input Positive is, IN- input negative
  • Output: OUT+ output is positive, OUT- output negative
  • Module Size: 50 x 37 x 13mm
  • Some Applications:
    • High-power LED constant current driver.
    • Lithium batteries (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charge.
    • Solar panels, wind generator voltage regulator circuit board power supply, such as automatic buck regulator circuit.
