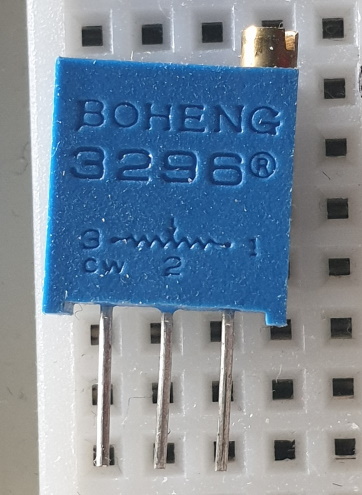

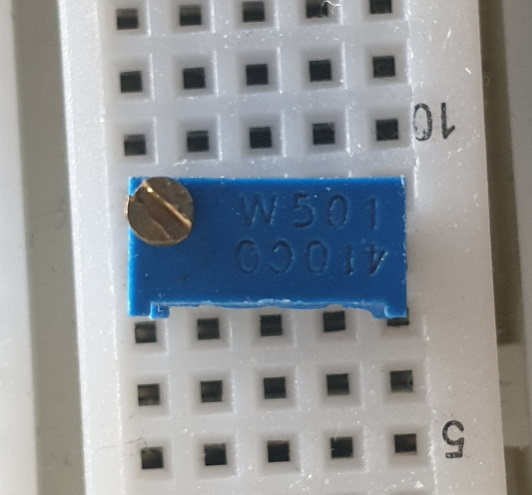

Trimpot Trimmer Potentiometer 3296

Electrical Characteristics:
  • Standard Resistance Range: 10 ohms to 2 megohms (see table)
  • Resistance Tolerance: ±10 % std.
  • Absolute Minimum Resistance: 1 % or 2 ohms max.
  • Contact Resistance Variation: 1.0 % or 3 ohms max.
  • Adjustability Voltage: ±0.01 %
  • Resistance: ±0.05 %
  • Resolution: Infinite
  • Insulation Resistance: 500 vdc. 1,000 megohms min.
  • Dielectric Strength:
    • Sea Level: 900 vac
    • 70,000 Feet: 350 vac
  • Effective Travel: 25 turns nom.
Environmental Characteristics:
  • Power Rating (300 volts max.)
    • 70 °C: 0.5 watt
    • 125 °C: 0 watt
  • Temperature Range: -55 °C to +125 °C
  • Temperature Coefficient: ±100 ppm/°C
  • Seal Test: 85 °C Fluorinert†
  • Humidity: MIL-STD-202 Method 103 96 hours (2 % ΔTR, 10 Megohms IR)
  • Vibration: 20 G (1 % ΔTR; 1 % ΔVR)
  • Shock: 100 G (1 % ΔTR; 1 % ΔVR)
  • Load Life: 1,000 hours 0.5 watt @ 70 °C (3 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV)
  • Rotational Life: 200 cycles (4 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV)
  • Moisture Sensitivity Level: N/A
  • ESD Classification (HBM): 2
Physical Characteristics
  • Torque: 3.0 oz-in. max.
  • Mechanical Stops: Wiper idles
  • Terminals: Solderable pins
  • Weight: 0.03 oz.
  • Marking: anufacturer’s trademark, resistance code, wiring diagram, date code, mfr’s. model number and style
  • Wiper: 50 % (Actual TR) ±10 %
  • Flammability: U.L. 94V-0
  • Adjustment Tool: H-90

Resistance Code Resistance (Ohms) #
500502
1011002
2012002
5015002
10210002
20220002
50250002
103100002
203200002
503500002
1041000002
2042000002

Datasheet
Bak 6.08.A



Trimpot Trimmer Potentiometer RM065

Resistor tolerance: 5%
Max voltage: 50V
Rating power: 0.1W

501, 500 ohm, #10, 8.05
102, 1K, #10, 8.05
202, 2K, #10, 8.05
502, 5K, #10, 8.05
103, 10K, #10, 8.05
203, 20K, #10, 8.05
503, 50K, #10, 8.05
104, 100K, #10, 8.05
204, 200K, #10, 8.05
105, 1M, #10, 8.05
