3 Way point wiring

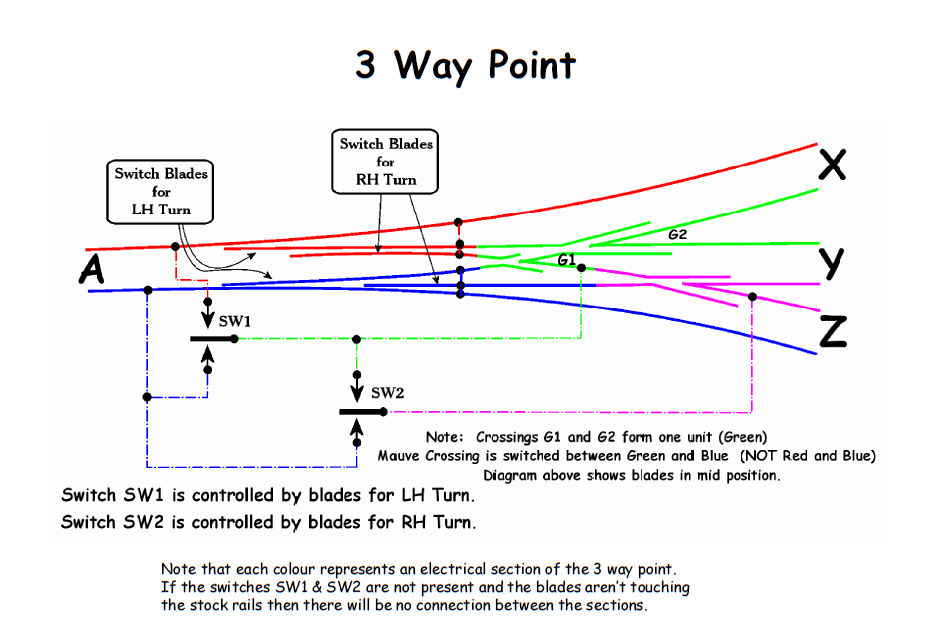

The diagram below shows, initially, the point with all switch blades in mid throw. Note that each colour represents an electrical section of the point. If the switches, SW1 & SW2, are not present and the switch blades aren't touching the stock rails then there will be no connection between the sections.



Route A => X

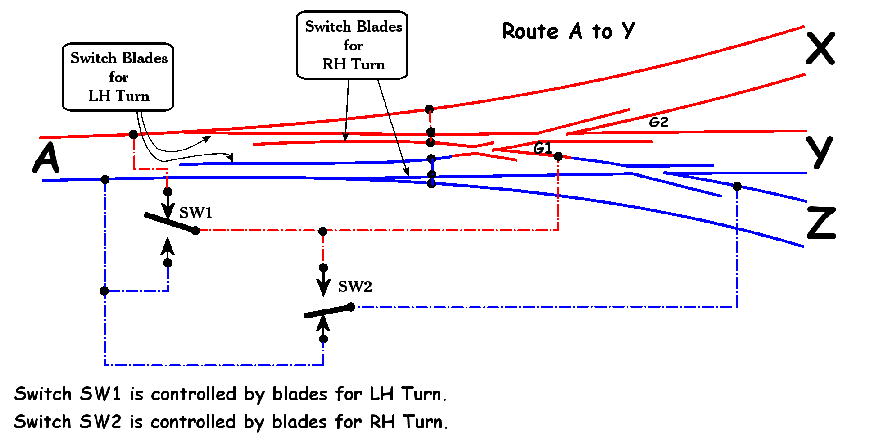

Route A => Y

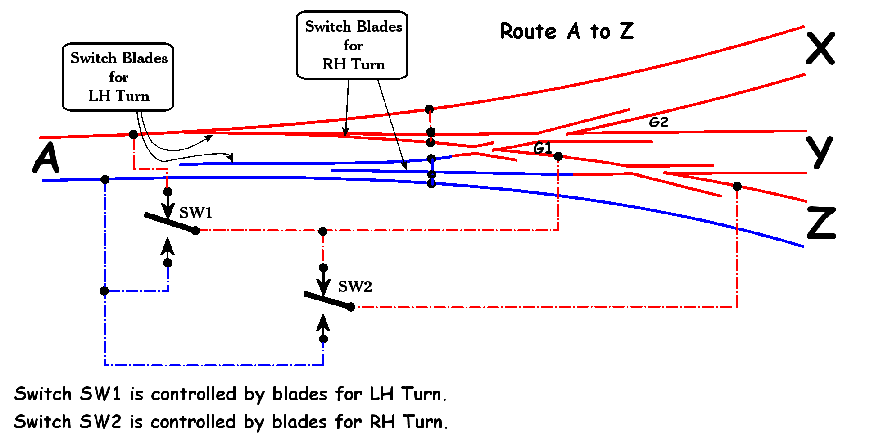

Route A => Z
