Single slip wiring

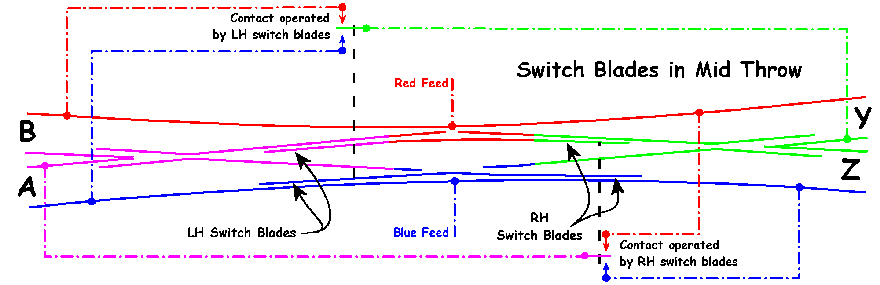

The diagram below shows, initially, the single slip with all switch blades in mid throw.
Note that each colour represents an electrical section of the single slip.
If the contacts are not present and the switch blades aren't touching the stock rails
then there will be no connection between the sections.

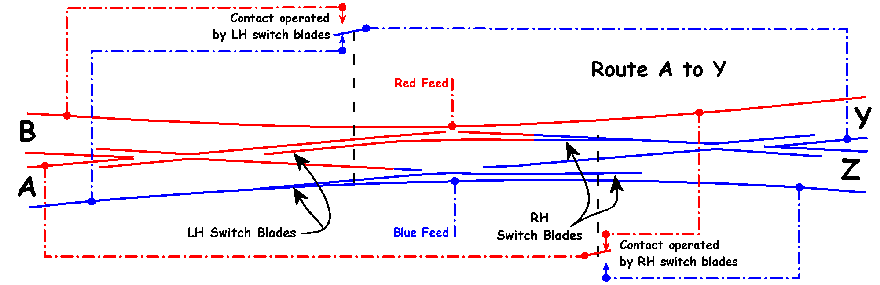

Route A => Y

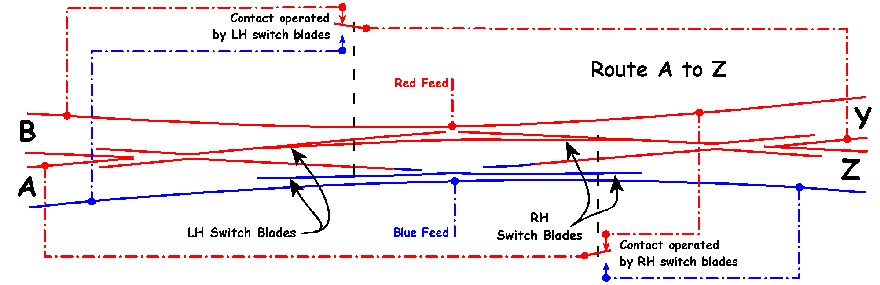

Route A => Z

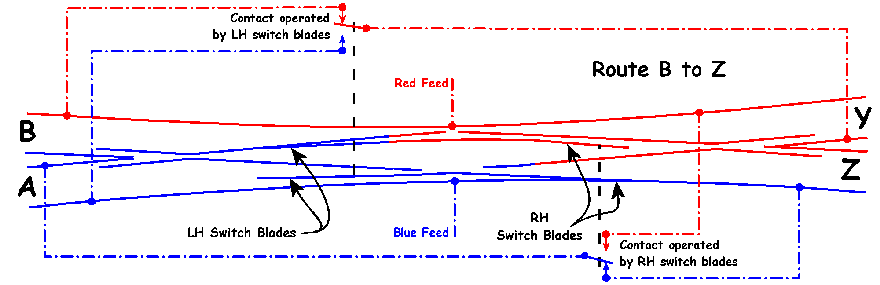

Route B => Z
